Name: Arctos Studio
SKU: 4827
Availability: InStock

Get started quickly with the User’s Guide:

User’s Guide

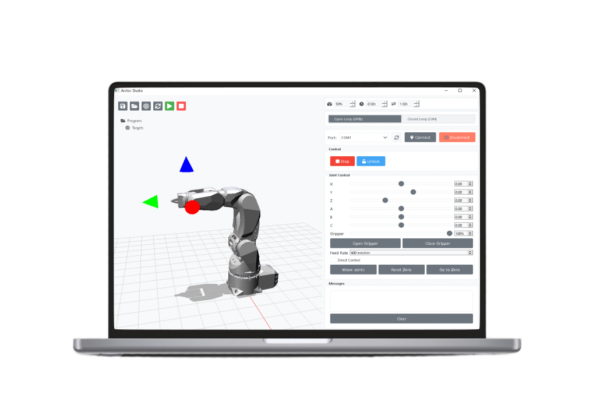

Arctos Studio – Robotic Arm Control Software

Version: 2.5

✅ B/C fix & timings improved

Version: 2.4

✅ AI PCB blocks generator
✅ B/C axes timings fix
✅ G1 commands added for G-code (Feedrate supported)
✅ Program and real robot sync
✅ Better shaders
✅ Faster boot

Version: 2.3

✅ MKS settings fix
✅ Plugins feature added.
✅ Custom robot colors

Version: 2.2

✅ Linux (Ubuntu 24.04) distribution
✅ MKS settings (closed loop)
✅ Calibration axes fix
✅ BC axes fix
✅ Preferences dialogs size fix

Linux readme:
1. Extract tar.gz in Desktop
2. chmod +x build_shortcut.sh
3. Run Arctos Studio from applications list

Version: 2.1

✅ Gesture control
✅ Collision prevention
✅ STL/SVG gizmo fix
✅ Object picking by RGB camera
✅ Circle drawing
✅ Text drawing
✅ Bug report

Version: 2.0

✅ Python commands from TCP server

Version: 1.9 Rev 2

✅ PLC hardware support (Arduino Uno, Mega, ESP32)
Tested on Arduino uno. Get firmware here.

✅ Closed loop gripper commands fix

✅ 3D printing E axis implemented.

Arctos-grbl needs implementation
✅ New splash screen

✅ Resolved the CAN disconnecting
✅ Updater won’t self-download if already installed

✅ Open loop/Closed loop toggle in ribbon

Version: 1.8 Release

✅ Updater fix – all versions bellow this will
not get updates correctly.

✅ Load program fix
✅ Grippper (open loop) fix

Version: 1.7 Release

✅ CAN bus fix

Version: 1.6 Release

✅ Subscription page fix

Version: 1.5 Release

✅ Add gripper fix

Version: 1.4 Release

✅ Voice control

✅ Night mode

✅ Custom gripper gcode

✅ Ai control

✅ Python programming

✅ PLC programming

✅ Reinforcement learning

✅ Computer vision

✅ 3D printing support

✅ Welding

✅ Path following

✅ Multiple robots

✅ Joystick control

✅ Physics simulation

✅ Multiple gripper support

✅ Conveyor belt support

✅ Basic shape modelling

✅ Line drawing and following

✅ Library

✅ New Ribbon

✅ Better shader

✅ Trajectory tracing

✅ Model coloring

✅ Robot gizmo easier control

✅ IK sliders

✅ Gear reduction can go > 100

Version: 1.3 Release

✅ Fixed CAN Messages – Improved communication stability across all modules.
✅ Gear Ratio & Axis Inversion Settings – Customize motor behavior with user-defined gear ratios and axis directions.
✅ Calibration Tools – Easily calibrate your robotic arm for accurate movements.
✅ GRBL Settings Integration – Configure GRBL parameters directly within the software.
✅ Homing Settings – Define and manage homing behavior for all axes.

Version: 1.2 Release

✅ Solved CAN bus issues opening the console

✅ Added gripper CAN messages

✅ Added STL import – Now we can import other STL files and manipulate them.

✅ Included STL into the Program tree

✅ Added collision detection

✅ New top bar

✅ Pick and place operations

✅ Console input

Version: 1.1 Release

✅ Enhanced 3D Viewer – Improved navigation with intuitive controls for panning, rotating, and zooming.

✅ Interactive Gizmo – Move the robot effortlessly in translation and rotation modes.

✅ Advanced Slider Controls – Each joint has precise motion limits to prevent crashes, with fine-tuned adjustments via the mouse wheel.

✅ Dedicated Gripper Controls – Now with a separate slider and quick-access buttons for smooth operation.

✅ Direct Robot Control – Seamlessly switch between simulation and real-time execution.

✅ Fix for the CANable Adapter – CAN messages are now successfully sent for more reliable communication.

✅ Program Editor Enhancements – Easily define, edit, and manage multiple motion targets.

✅ Adjustable Motion Parameters – Customize transition speeds, delays, and movement precision for optimized workflows.

Version: 1.0 Beta

Key Features in Version 1.0 Beta:

✅ Forward & Inverse Kinematics (FK & IK) – Easily position your robotic arm with precision.

✅ GRBL & CAN Bus Support – Control your robotic arm with industry-standard protocols.

✅ Gripper Controls – Open, close, and fine-tune your gripper with a simple click.
